Çözüldü GPU sürücü güncelleme sonrası mavi ekran hatası

Bu konu çözüldü olarak işaretlenmiştir. Çözülmediğini düşünüyorsanız konuyu rapor edebilirsiniz.
İşletim sistemi
Windows 10

Alcatraz Tetik

Hectopat
Katılım
23 Ekim 2020
Mesajlar
173
Çözümler
11
Yer
System32
Daha fazla
Cinsiyet
Erkek
Meslek
Tarihçi

Bu akşam NVIDIA ekran kartı sürücüsünü güncelledim. Ardından kurulum tamamlandı ve oyuna girdim (World of Tanks). Oyun siyah ekranda yüklenirken ses dondu ve siyah ekranda kaldı. 10,15 saniye sonra PC kendini yeniden başlattı.


PC otomatik yeniden başladığında farklı oyunlara giriş yapmayı denedim ve bir sorun yaşamadım. World of Tanks'a girmeye çalıştığımda ise siyah ekranda oyun bir süre kalıp oyundan atıyordu bu sorunu da dosyaları onarmakla çözdüm. Ancak mavi ekranın nedenini merak ettim acaba donanım bazlı bir sorun mu diye.

Dump dosyasını paylaştım sorunu bilen vardır umarım.

Tüm sürücülerim günceldir.

Yardımlarınız için şimdiden teşekkürler.

Son düzenleme:
Çözüm
[CODE title="Debug Sonuçları"]DPC_WATCHDOG_VIOLATION (133)
The DPC watchdog detected a prolonged run time at an IRQL of DISPATCH_LEVEL.
or above.
Arguments:
Arg1: 0000000000000000, A single DPC or ISR exceeded its time allotment. The offending.
component can usually be identified with a stack trace.
Arg2: 0000000000000501, The DPC time count (in ticks).
Arg3: 0000000000000500, The DPC time allotment (in ticks).
Arg4: fffff806570fb320, cast to nt!DPC_WATCHDOG_GLOBAL_TRIAGE_BLOCK, which contains.
additional information regarding this single DPC timeout.

Debugging Details:
------------------

*************************************************************************
*** ***
*** ***
*** Either you specified an unqualified symbol, or your debugger ***
*** doesn't have full symbol information. Unqualified symbol ***
*** resolution is turned off by default. Please either specify a ***
*** fully qualified symbol module!symbolname, or enable resolution ***
*** of unqualified symbols by typing ".symopt- 100". Note that ***
*** enabling unqualified symbol resolution with network symbol ***
*** server shares in the symbol path may cause the debugger to ***
*** appear to hang for long periods of time when an incorrect ***
*** symbol name is typed or the network symbol server is down. ***
*** ***
*** For some commands to work properly, your symbol path ***
*** must point to .pdb files that have full type information. ***
*** ***
*** Certain .pdb files (such as the public OS symbols) do not ***
*** contain the required information. Contact the group that ***
*** provided you with these symbols if you need this command to ***
*** work. ***
*** ***
*** Type referenced: TickPeriods ***
*** ***
*************************************************************************
*** WARNING: Unable to verify timestamp for win32k.sys

KEY_VALUES_STRING: 1

Key : Analysis.CPU.mSec
Value: 6125.

Key : Analysis.DebugAnalysisManager
Value: Create.

Key : Analysis.Elapsed.mSec
Value: 146138.

Key : Analysis.Init.CPU.mSec
Value: 639.

Key : Analysis.Init.Elapsed.mSec
Value: 60011.

Key : Analysis.Memory.CommitPeak.Mb
Value: 79.

Key : WER.OS.Branch
Value: vb_release.

Key : WER.OS.Timestamp
Value: 2019-12-06T14:06:00Z

Key : WER.OS.Version
Value: 10.0.19041.1

BUGCHECK_CODE: 133.

BUGCHECK_P1: 0

BUGCHECK_P2: 501.

BUGCHECK_P3: 500.

BUGCHECK_P4: fffff806570fb320.

DPC_TIMEOUT_TYPE: SINGLE_DPC_TIMEOUT_EXCEEDED

TRAP_FRAME: fffff80659273e50 -- (.trap 0xfffff80659273e50)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000000000010072 rbx=0000000000000000 rcx=ffff808ac4d2c680
rdx=000000000010a01c rsi=0000000000000000 rdi=0000000000000000
rip=fffff80669375092 rsp=fffff80659273fe0 rbp=fffff80659274070
r8=fffff80659274000 r9=000000000010a01c r10=ffff808ac38ea5e0
r11=000000000000000c r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0 nv up ei pl nz ac pe nc.
nvlddmkm+0x85092:
fffff806`69375092 488b5c2440 mov rbx,qword ptr [rsp+40h] ss:0018:fffff806`59274020=0000000000000020
Resetting default scope.

BLACKBOXBSD: 1 (!blackboxbsd)

BLACKBOXNTFS: 1 (!blackboxntfs)

BLACKBOXPNP: 1 (!blackboxpnp)

BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System.

DPC_STACK_BASE: FFFFF80659274FB0.

STACK_TEXT:
fffff806`5927bc88 fffff806`5681ee32 : 00000000`00000133 00000000`00000000 00000000`00000501 00000000`00000500 : nt!KeBugCheckEx
fffff806`5927bc90 fffff806`5661c53d : 0000a557`b6e2b04a fffff806`51071180 00000000`00000246 00000000`015ea135 : nt!KeAccumulateTicks+0x205b12
fffff806`5927bcf0 fffff806`5661cae1 : fffff806`5927be90 00000000`00d0fdd9 fffff806`51071180 00000000`00000001 : nt!KiUpdateRunTime+0x5d
fffff806`5927bd40 fffff806`56616953 : fffff806`51071180 00000000`00000000 fffff806`57031558 00000000`00000000 : nt!KiUpdateTime+0x4a1
fffff806`5927be80 fffff806`5661f312 : fffff806`59273e50 fffff806`59273ed0 fffff806`59273e00 00000000`00000002 : nt!KeClockInterruptNotify+0x2e3
fffff806`5927bf30 fffff806`5667e795 : 00000343`f9cbda09 fffff806`570f3a20 fffff806`570f3ad0 ffffad84`2b3f09ac : nt!HalpTimerClockInterrupt+0xe2
fffff806`5927bf60 fffff806`567f873a : fffff806`59273ed0 fffff806`570f3a20 00000000`00000000 00000000`00000000 : nt!KiCallInterruptServiceRoutine+0xa5
fffff806`5927bfb0 fffff806`567f8ca7 : 00000000`00000000 00000000`00000000 2242c1dc`1001080c 08095204`b880bf04 : nt!KiInterruptSubDispatchNoLockNoEtw+0xfa
fffff806`59273e50 fffff806`69375092 : 00000000`0010a01c ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c : nt!KiInterruptDispatchNoLockNoEtw+0x37
fffff806`59273fe0 00000000`0010a01c : ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 : nvlddmkm+0x85092
fffff806`59273fe8 ffff808a`bdf26000 : ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 00000000`00000000 : 0x10a01c.
fffff806`59273ff0 ffff808a`bdf27098 : 00000000`0010a01c 00000000`00000000 00000000`00000000 ffff808a`b977ed20 : 0xffff808a`bdf26000
fffff806`59273ff8 00000000`0010a01c : 00000000`00000000 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d : 0xffff808a`bdf27098
fffff806`59274000 00000000`00000000 : 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d 00000000`00000020 : 0x10a01c.

SYMBOL_NAME: nvlddmkm+85092

MODULE_NAME: nvlddmkm.

IMAGE_NAME: nvlddmkm.sys

STACK_COMMAND: .thread ; .cxr ; kb.

BUCKET_ID_FUNC_OFFSET: 85092.

FAILURE_BUCKET_ID: 0x133_DPC_nvlddmkm!unknown_function

OS_VERSION: 10.0.19041.1

BUILDLAB_STR: vb_release.

OSPLATFORM_TYPE: x64.

OSNAME: Windows 10.

FAILURE_ID_HASH: {15c3af0e-5564-7a80-2e26-65b5115ecc4d}

Followup: MachineOwner[/CODE]
  • Başlat ekranına sağ tık yapıp aygıt yöneticisini açalım.
  • IDE ATA/ATAPI denetleyicilerini genişletin.
  • ‘'SATA AHCI" denetleyicisini ( standart SATA AHCI denetleyici ) seçin. Doğru denetleyiciyi seçtiğinizden emin olmak için denetleyiciye sağ tıklayıp özellikler diyelim. sürücü sekmesine tıklayıp, sürücü ayrıntılarına girelim. Burada iastor.sys sürücüsünün yazdığına emin olalım ve tamama tıklayalım.
  • sürücü sekmesinden, sürücüyü güncelleştir'e tıklayalım.
  • sürücü yazılımı için bilgisayarımı tara seçeneğine tıklayalım.
  • bilgisayarımdaki aygıt sürücüleri listesinden seçmeme izin ver kısmına tıklayalım.
  • standard SATA AHCI controller seçelim.
  • Sonra ileri diyelim ve kapat'a tıklayalım. Sonra bilgisayarınızı yeniden başlatın.

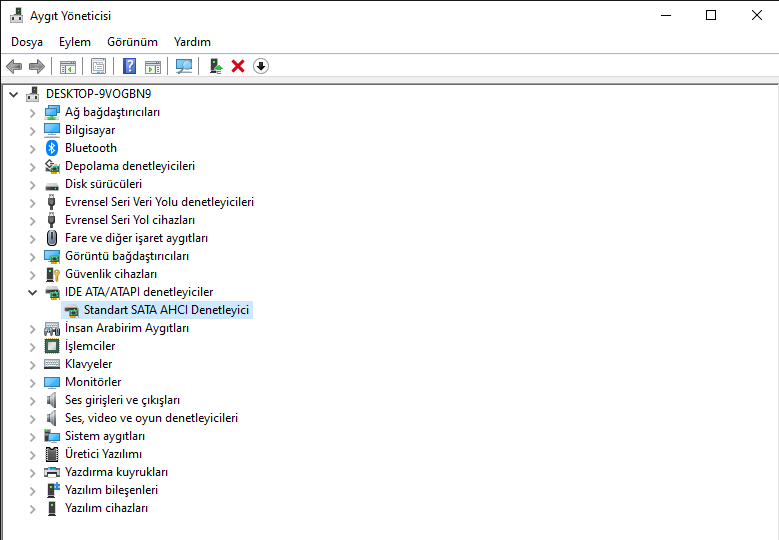

Hocam, atmış olduğum resimdeki gibi iastor.sys yerinde storahci.sys yazmakta
Bu nedenle yanlış bir şey yaparım diye devam etmedim. Devam edeyim mi?

Ayrıyeten anakart destek bölümümde resimdeki gibi sürücüler var. Bildiğim kadarıyla bunlar disk birleştirme programları ancak yine de bir sorayım dedim.
[CODE title="Debug Sonuçları"]DPC_WATCHDOG_VIOLATION (133)
The DPC watchdog detected a prolonged run time at an IRQL of DISPATCH_LEVEL
or above.
Arguments:
Arg1: 0000000000000000, A single DPC or ISR exceeded its time allotment. The offending
component can usually be identified with a stack trace.
Arg2: 0000000000000501, The DPC time count (in ticks).
Arg3: 0000000000000500, The DPC time allotment (in ticks).
Arg4: fffff806570fb320, cast to nt!DPC_WATCHDOG_GLOBAL_TRIAGE_BLOCK, which contains
additional information regarding this single DPC timeout

Debugging Details:
------------------

*************************************************************************
*** ***
*** ***
*** Either you specified an unqualified symbol, or your debugger ***
*** doesn't have full symbol information. Unqualified symbol ***
*** resolution is turned off by default. Please either specify a ***
*** fully qualified symbol module!symbolname, or enable resolution ***
*** of unqualified symbols by typing ".symopt- 100". Note that ***
*** enabling unqualified symbol resolution with network symbol ***
*** server shares in the symbol path may cause the debugger to ***
*** appear to hang for long periods of time when an incorrect ***
*** symbol name is typed or the network symbol server is down. ***
*** ***
*** For some commands to work properly, your symbol path ***
*** must point to .pdb files that have full type information. ***
*** ***
*** Certain .pdb files (such as the public OS symbols) do not ***
*** contain the required information. Contact the group that ***
*** provided you with these symbols if you need this command to ***
*** work. ***
*** ***
*** Type referenced: TickPeriods ***
*** ***
*************************************************************************
*** WARNING: Unable to verify timestamp for win32k.sys

KEY_VALUES_STRING: 1

Key : Analysis.CPU.mSec
Value: 6125

Key : Analysis.DebugAnalysisManager
Value: Create

Key : Analysis.Elapsed.mSec
Value: 146138

Key : Analysis.Init.CPU.mSec
Value: 639

Key : Analysis.Init.Elapsed.mSec
Value: 60011

Key : Analysis.Memory.CommitPeak.Mb
Value: 79

Key : WER.OS.Branch
Value: vb_release

Key : WER.OS.Timestamp
Value: 2019-12-06T14:06:00Z

Key : WER.OS.Version
Value: 10.0.19041.1


BUGCHECK_CODE: 133

BUGCHECK_P1: 0

BUGCHECK_P2: 501

BUGCHECK_P3: 500

BUGCHECK_P4: fffff806570fb320

DPC_TIMEOUT_TYPE: SINGLE_DPC_TIMEOUT_EXCEEDED

TRAP_FRAME: fffff80659273e50 -- (.trap 0xfffff80659273e50)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000000000010072 rbx=0000000000000000 rcx=ffff808ac4d2c680
rdx=000000000010a01c rsi=0000000000000000 rdi=0000000000000000
rip=fffff80669375092 rsp=fffff80659273fe0 rbp=fffff80659274070
r8=fffff80659274000 r9=000000000010a01c r10=ffff808ac38ea5e0
r11=000000000000000c r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0 nv up ei pl nz ac pe nc
nvlddmkm+0x85092:
fffff806`69375092 488b5c2440 mov rbx,qword ptr [rsp+40h] ss:0018:fffff806`59274020=0000000000000020
Resetting default scope

BLACKBOXBSD: 1 (!blackboxbsd)


BLACKBOXNTFS: 1 (!blackboxntfs)


BLACKBOXPNP: 1 (!blackboxpnp)


BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System

DPC_STACK_BASE: FFFFF80659274FB0

STACK_TEXT:
fffff806`5927bc88 fffff806`5681ee32 : 00000000`00000133 00000000`00000000 00000000`00000501 00000000`00000500 : nt!KeBugCheckEx
fffff806`5927bc90 fffff806`5661c53d : 0000a557`b6e2b04a fffff806`51071180 00000000`00000246 00000000`015ea135 : nt!KeAccumulateTicks+0x205b12
fffff806`5927bcf0 fffff806`5661cae1 : fffff806`5927be90 00000000`00d0fdd9 fffff806`51071180 00000000`00000001 : nt!KiUpdateRunTime+0x5d
fffff806`5927bd40 fffff806`56616953 : fffff806`51071180 00000000`00000000 fffff806`57031558 00000000`00000000 : nt!KiUpdateTime+0x4a1
fffff806`5927be80 fffff806`5661f312 : fffff806`59273e50 fffff806`59273ed0 fffff806`59273e00 00000000`00000002 : nt!KeClockInterruptNotify+0x2e3
fffff806`5927bf30 fffff806`5667e795 : 00000343`f9cbda09 fffff806`570f3a20 fffff806`570f3ad0 ffffad84`2b3f09ac : nt!HalpTimerClockInterrupt+0xe2
fffff806`5927bf60 fffff806`567f873a : fffff806`59273ed0 fffff806`570f3a20 00000000`00000000 00000000`00000000 : nt!KiCallInterruptServiceRoutine+0xa5
fffff806`5927bfb0 fffff806`567f8ca7 : 00000000`00000000 00000000`00000000 2242c1dc`1001080c 08095204`b880bf04 : nt!KiInterruptSubDispatchNoLockNoEtw+0xfa
fffff806`59273e50 fffff806`69375092 : 00000000`0010a01c ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c : nt!KiInterruptDispatchNoLockNoEtw+0x37
fffff806`59273fe0 00000000`0010a01c : ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 : nvlddmkm+0x85092
fffff806`59273fe8 ffff808a`bdf26000 : ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 00000000`00000000 : 0x10a01c
fffff806`59273ff0 ffff808a`bdf27098 : 00000000`0010a01c 00000000`00000000 00000000`00000000 ffff808a`b977ed20 : 0xffff808a`bdf26000
fffff806`59273ff8 00000000`0010a01c : 00000000`00000000 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d : 0xffff808a`bdf27098
fffff806`59274000 00000000`00000000 : 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d 00000000`00000020 : 0x10a01c


SYMBOL_NAME: nvlddmkm+85092

MODULE_NAME: nvlddmkm

IMAGE_NAME: nvlddmkm.sys

STACK_COMMAND: .thread ; .cxr ; kb

BUCKET_ID_FUNC_OFFSET: 85092

FAILURE_BUCKET_ID: 0x133_DPC_nvlddmkm!unknown_function

OS_VERSION: 10.0.19041.1

BUILDLAB_STR: vb_release

OSPLATFORM_TYPE: x64

OSNAME: Windows 10

FAILURE_ID_HASH: {15c3af0e-5564-7a80-2e26-65b5115ecc4d}

Followup: MachineOwner[/CODE]
  • Başlat ekranına sağ tık yapıp Aygıt yöneticisini açalım.
  • IDE ATA/ATAPI denetleyicilerini genişletin.
  • ‘’SATA AHCI’’ denetleyicisini ( Standart Sata Ahcı Denetleyici ) seçin. Doğru denetleyiciyi seçtiğinizden emin olmak için denetleyiciye sağ tıklayıp özellikler diyelim. Sürücü sekmesine tıklayıp, sürücü ayrıntılarına girelim. Burada iastor.sys sürücüsünün yazdığına emin olalım ve tamama tıklayalım
  • Sürücü sekmesinden, Sürücüyü güncelleştir’e tıklayalım
  • Sürücü yazılımı için bilgisayarımı tara seçeneğine tıklayalım.
  • Bilgisayarımdaki aygıt sürücüleri listesinden seçmeme izin ver kısmına tıklayalım.
  • Standard SATA AHCI Controller seçelim
  • Sonra ileri diyelim ve kapat’a tıklayalım. Sonra bilgisayarınızı yeniden başlatın.
Dediklerinizi yaptım hocam ancak sorun hala devam etmekte.
Ekran kartı sürücüsü ile ilgili bir sorunmuş, yeni sürümde sorun kalmadı.

Bu akşam NVIDIA ekran kartı sürücüsünü güncelledim. Ardından kurulum tamamlandı ve oyuna girdim (World of Tanks). Oyun siyah ekranda yüklenirken ses dondu ve siyah ekranda kaldı. 10,15 saniye sonra PC kendini yeniden başlattı.


PC otomatik yeniden başladığında farklı oyunlara giriş yapmayı denedim ve bir sorun yaşamadım. World of Tanks'a girmeye çalıştığımda ise siyah ekranda oyun bir süre kalıp oyundan atıyordu bu sorunu da dosyaları onarmakla çözdüm. Ancak mavi ekranın nedenini merak ettim acaba donanım bazlı bir sorun mu diye.

Dump dosyasını paylaştım sorunu bilen vardır umarım.

Tüm sürücülerim günceldir.

Yardımlarınız için şimdiden teşekkürler.
[CODE title="Debug Sonuçları"]DPC_WATCHDOG_VIOLATION (133)
The DPC watchdog detected a prolonged run time at an IRQL of DISPATCH_LEVEL
or above.
Arguments:
Arg1: 0000000000000000, A single DPC or ISR exceeded its time allotment. The offending
component can usually be identified with a stack trace.
Arg2: 0000000000000501, The DPC time count (in ticks).
Arg3: 0000000000000500, The DPC time allotment (in ticks).
Arg4: fffff806570fb320, cast to nt!DPC_WATCHDOG_GLOBAL_TRIAGE_BLOCK, which contains
additional information regarding this single DPC timeout

Debugging Details:
------------------

*************************************************************************
*** ***
*** ***
*** Either you specified an unqualified symbol, or your debugger ***
*** doesn't have full symbol information. Unqualified symbol ***
*** resolution is turned off by default. Please either specify a ***
*** fully qualified symbol module!symbolname, or enable resolution ***
*** of unqualified symbols by typing ".symopt- 100". Note that ***
*** enabling unqualified symbol resolution with network symbol ***
*** server shares in the symbol path may cause the debugger to ***
*** appear to hang for long periods of time when an incorrect ***
*** symbol name is typed or the network symbol server is down. ***
*** ***
*** For some commands to work properly, your symbol path ***
*** must point to .pdb files that have full type information. ***
*** ***
*** Certain .pdb files (such as the public OS symbols) do not ***
*** contain the required information. Contact the group that ***
*** provided you with these symbols if you need this command to ***
*** work. ***
*** ***
*** Type referenced: TickPeriods ***
*** ***
*************************************************************************
*** WARNING: Unable to verify timestamp for win32k.sys

KEY_VALUES_STRING: 1

Key : Analysis.CPU.mSec
Value: 6125

Key : Analysis.DebugAnalysisManager
Value: Create

Key : Analysis.Elapsed.mSec
Value: 146138

Key : Analysis.Init.CPU.mSec
Value: 639

Key : Analysis.Init.Elapsed.mSec
Value: 60011

Key : Analysis.Memory.CommitPeak.Mb
Value: 79

Key : WER.OS.Branch
Value: vb_release

Key : WER.OS.Timestamp
Value: 2019-12-06T14:06:00Z

Key : WER.OS.Version
Value: 10.0.19041.1


BUGCHECK_CODE: 133

BUGCHECK_P1: 0

BUGCHECK_P2: 501

BUGCHECK_P3: 500

BUGCHECK_P4: fffff806570fb320

DPC_TIMEOUT_TYPE: SINGLE_DPC_TIMEOUT_EXCEEDED

TRAP_FRAME: fffff80659273e50 -- (.trap 0xfffff80659273e50)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000000000010072 rbx=0000000000000000 rcx=ffff808ac4d2c680
rdx=000000000010a01c rsi=0000000000000000 rdi=0000000000000000
rip=fffff80669375092 rsp=fffff80659273fe0 rbp=fffff80659274070
r8=fffff80659274000 r9=000000000010a01c r10=ffff808ac38ea5e0
r11=000000000000000c r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0 nv up ei pl nz ac pe nc
nvlddmkm+0x85092:
fffff806`69375092 488b5c2440 mov rbx,qword ptr [rsp+40h] ss:0018:fffff806`59274020=0000000000000020
Resetting default scope

BLACKBOXBSD: 1 (!blackboxbsd)


BLACKBOXNTFS: 1 (!blackboxntfs)


BLACKBOXPNP: 1 (!blackboxpnp)


BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System

DPC_STACK_BASE: FFFFF80659274FB0

STACK_TEXT:
fffff806`5927bc88 fffff806`5681ee32 : 00000000`00000133 00000000`00000000 00000000`00000501 00000000`00000500 : nt!KeBugCheckEx
fffff806`5927bc90 fffff806`5661c53d : 0000a557`b6e2b04a fffff806`51071180 00000000`00000246 00000000`015ea135 : nt!KeAccumulateTicks+0x205b12
fffff806`5927bcf0 fffff806`5661cae1 : fffff806`5927be90 00000000`00d0fdd9 fffff806`51071180 00000000`00000001 : nt!KiUpdateRunTime+0x5d
fffff806`5927bd40 fffff806`56616953 : fffff806`51071180 00000000`00000000 fffff806`57031558 00000000`00000000 : nt!KiUpdateTime+0x4a1
fffff806`5927be80 fffff806`5661f312 : fffff806`59273e50 fffff806`59273ed0 fffff806`59273e00 00000000`00000002 : nt!KeClockInterruptNotify+0x2e3
fffff806`5927bf30 fffff806`5667e795 : 00000343`f9cbda09 fffff806`570f3a20 fffff806`570f3ad0 ffffad84`2b3f09ac : nt!HalpTimerClockInterrupt+0xe2
fffff806`5927bf60 fffff806`567f873a : fffff806`59273ed0 fffff806`570f3a20 00000000`00000000 00000000`00000000 : nt!KiCallInterruptServiceRoutine+0xa5
fffff806`5927bfb0 fffff806`567f8ca7 : 00000000`00000000 00000000`00000000 2242c1dc`1001080c 08095204`b880bf04 : nt!KiInterruptSubDispatchNoLockNoEtw+0xfa
fffff806`59273e50 fffff806`69375092 : 00000000`0010a01c ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c : nt!KiInterruptDispatchNoLockNoEtw+0x37
fffff806`59273fe0 00000000`0010a01c : ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 : nvlddmkm+0x85092
fffff806`59273fe8 ffff808a`bdf26000 : ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 00000000`00000000 : 0x10a01c
fffff806`59273ff0 ffff808a`bdf27098 : 00000000`0010a01c 00000000`00000000 00000000`00000000 ffff808a`b977ed20 : 0xffff808a`bdf26000
fffff806`59273ff8 00000000`0010a01c : 00000000`00000000 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d : 0xffff808a`bdf27098
fffff806`59274000 00000000`00000000 : 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d 00000000`00000020 : 0x10a01c


SYMBOL_NAME: nvlddmkm+85092

MODULE_NAME: nvlddmkm

IMAGE_NAME: nvlddmkm.sys

STACK_COMMAND: .thread ; .cxr ; kb

BUCKET_ID_FUNC_OFFSET: 85092

FAILURE_BUCKET_ID: 0x133_DPC_nvlddmkm!unknown_function

OS_VERSION: 10.0.19041.1

BUILDLAB_STR: vb_release

OSPLATFORM_TYPE: x64

OSNAME: Windows 10

FAILURE_ID_HASH: {15c3af0e-5564-7a80-2e26-65b5115ecc4d}

Followup: MachineOwner[/CODE]
  • Başlat ekranına sağ tık yapıp Aygıt yöneticisini açalım.
  • IDE ATA/ATAPI denetleyicilerini genişletin.
  • ‘’SATA AHCI’’ denetleyicisini ( Standart Sata Ahcı Denetleyici ) seçin. Doğru denetleyiciyi seçtiğinizden emin olmak için denetleyiciye sağ tıklayıp özellikler diyelim. Sürücü sekmesine tıklayıp, sürücü ayrıntılarına girelim. Burada iastor.sys sürücüsünün yazdığına emin olalım ve tamama tıklayalım
  • Sürücü sekmesinden, Sürücüyü güncelleştir’e tıklayalım
  • Sürücü yazılımı için bilgisayarımı tara seçeneğine tıklayalım.
  • Bilgisayarımdaki aygıt sürücüleri listesinden seçmeme izin ver kısmına tıklayalım.
  • Standard SATA AHCI Controller seçelim
  • Sonra ileri diyelim ve kapat’a tıklayalım. Sonra bilgisayarınızı yeniden başlatın.

[CODE title="Debug Sonuçları"]DPC_WATCHDOG_VIOLATION (133)
The DPC watchdog detected a prolonged run time at an IRQL of DISPATCH_LEVEL.
or above.
Arguments:
Arg1: 0000000000000000, A single DPC or ISR exceeded its time allotment. The offending.
component can usually be identified with a stack trace.
Arg2: 0000000000000501, The DPC time count (in ticks).
Arg3: 0000000000000500, The DPC time allotment (in ticks).
Arg4: fffff806570fb320, cast to nt!DPC_WATCHDOG_GLOBAL_TRIAGE_BLOCK, which contains.
additional information regarding this single DPC timeout.

Debugging Details:
------------------

*************************************************************************
*** ***
*** ***
*** Either you specified an unqualified symbol, or your debugger ***
*** doesn't have full symbol information. Unqualified symbol ***
*** resolution is turned off by default. Please either specify a ***
*** fully qualified symbol module!symbolname, or enable resolution ***
*** of unqualified symbols by typing ".symopt- 100". Note that ***
*** enabling unqualified symbol resolution with network symbol ***
*** server shares in the symbol path may cause the debugger to ***
*** appear to hang for long periods of time when an incorrect ***
*** symbol name is typed or the network symbol server is down. ***
*** ***
*** For some commands to work properly, your symbol path ***
*** must point to .pdb files that have full type information. ***
*** ***
*** Certain .pdb files (such as the public OS symbols) do not ***
*** contain the required information. Contact the group that ***
*** provided you with these symbols if you need this command to ***
*** work. ***
*** ***
*** Type referenced: TickPeriods ***
*** ***
*************************************************************************
*** WARNING: Unable to verify timestamp for win32k.sys

KEY_VALUES_STRING: 1

Key : Analysis.CPU.mSec
Value: 6125.

Key : Analysis.DebugAnalysisManager
Value: Create.

Key : Analysis.Elapsed.mSec
Value: 146138.

Key : Analysis.Init.CPU.mSec
Value: 639.

Key : Analysis.Init.Elapsed.mSec
Value: 60011.

Key : Analysis.Memory.CommitPeak.Mb
Value: 79.

Key : WER.OS.Branch
Value: vb_release.

Key : WER.OS.Timestamp
Value: 2019-12-06T14:06:00Z

Key : WER.OS.Version
Value: 10.0.19041.1

BUGCHECK_CODE: 133.

BUGCHECK_P1: 0

BUGCHECK_P2: 501.

BUGCHECK_P3: 500.

BUGCHECK_P4: fffff806570fb320.

DPC_TIMEOUT_TYPE: SINGLE_DPC_TIMEOUT_EXCEEDED

TRAP_FRAME: fffff80659273e50 -- (.trap 0xfffff80659273e50)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000000000010072 rbx=0000000000000000 rcx=ffff808ac4d2c680
rdx=000000000010a01c rsi=0000000000000000 rdi=0000000000000000
rip=fffff80669375092 rsp=fffff80659273fe0 rbp=fffff80659274070
r8=fffff80659274000 r9=000000000010a01c r10=ffff808ac38ea5e0
r11=000000000000000c r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0 nv up ei pl nz ac pe nc.
nvlddmkm+0x85092:
fffff806`69375092 488b5c2440 mov rbx,qword ptr [rsp+40h] ss:0018:fffff806`59274020=0000000000000020
Resetting default scope.

BLACKBOXBSD: 1 (!blackboxbsd)

BLACKBOXNTFS: 1 (!blackboxntfs)

BLACKBOXPNP: 1 (!blackboxpnp)

BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System.

DPC_STACK_BASE: FFFFF80659274FB0.

STACK_TEXT:
fffff806`5927bc88 fffff806`5681ee32 : 00000000`00000133 00000000`00000000 00000000`00000501 00000000`00000500 : nt!KeBugCheckEx
fffff806`5927bc90 fffff806`5661c53d : 0000a557`b6e2b04a fffff806`51071180 00000000`00000246 00000000`015ea135 : nt!KeAccumulateTicks+0x205b12
fffff806`5927bcf0 fffff806`5661cae1 : fffff806`5927be90 00000000`00d0fdd9 fffff806`51071180 00000000`00000001 : nt!KiUpdateRunTime+0x5d
fffff806`5927bd40 fffff806`56616953 : fffff806`51071180 00000000`00000000 fffff806`57031558 00000000`00000000 : nt!KiUpdateTime+0x4a1
fffff806`5927be80 fffff806`5661f312 : fffff806`59273e50 fffff806`59273ed0 fffff806`59273e00 00000000`00000002 : nt!KeClockInterruptNotify+0x2e3
fffff806`5927bf30 fffff806`5667e795 : 00000343`f9cbda09 fffff806`570f3a20 fffff806`570f3ad0 ffffad84`2b3f09ac : nt!HalpTimerClockInterrupt+0xe2
fffff806`5927bf60 fffff806`567f873a : fffff806`59273ed0 fffff806`570f3a20 00000000`00000000 00000000`00000000 : nt!KiCallInterruptServiceRoutine+0xa5
fffff806`5927bfb0 fffff806`567f8ca7 : 00000000`00000000 00000000`00000000 2242c1dc`1001080c 08095204`b880bf04 : nt!KiInterruptSubDispatchNoLockNoEtw+0xfa
fffff806`59273e50 fffff806`69375092 : 00000000`0010a01c ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c : nt!KiInterruptDispatchNoLockNoEtw+0x37
fffff806`59273fe0 00000000`0010a01c : ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 : nvlddmkm+0x85092
fffff806`59273fe8 ffff808a`bdf26000 : ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 00000000`00000000 : 0x10a01c.
fffff806`59273ff0 ffff808a`bdf27098 : 00000000`0010a01c 00000000`00000000 00000000`00000000 ffff808a`b977ed20 : 0xffff808a`bdf26000
fffff806`59273ff8 00000000`0010a01c : 00000000`00000000 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d : 0xffff808a`bdf27098
fffff806`59274000 00000000`00000000 : 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d 00000000`00000020 : 0x10a01c.

SYMBOL_NAME: nvlddmkm+85092

MODULE_NAME: nvlddmkm.

IMAGE_NAME: nvlddmkm.sys

STACK_COMMAND: .thread ; .cxr ; kb.

BUCKET_ID_FUNC_OFFSET: 85092.

FAILURE_BUCKET_ID: 0x133_DPC_nvlddmkm!unknown_function

OS_VERSION: 10.0.19041.1

BUILDLAB_STR: vb_release.

OSPLATFORM_TYPE: x64.

OSNAME: Windows 10.

FAILURE_ID_HASH: {15c3af0e-5564-7a80-2e26-65b5115ecc4d}

Followup: MachineOwner[/CODE]
  • Başlat ekranına sağ tık yapıp aygıt yöneticisini açalım.
  • IDE ATA/ATAPI denetleyicilerini genişletin.
  • ‘'SATA AHCI" denetleyicisini ( standart SATA AHCI denetleyici ) seçin. Doğru denetleyiciyi seçtiğinizden emin olmak için denetleyiciye sağ tıklayıp özellikler diyelim. sürücü sekmesine tıklayıp, sürücü ayrıntılarına girelim. Burada iastor.sys sürücüsünün yazdığına emin olalım ve tamama tıklayalım.
  • sürücü sekmesinden, sürücüyü güncelleştir'e tıklayalım.
  • sürücü yazılımı için bilgisayarımı tara seçeneğine tıklayalım.
  • bilgisayarımdaki aygıt sürücüleri listesinden seçmeme izin ver kısmına tıklayalım.
  • standard SATA AHCI controller seçelim.
  • Sonra ileri diyelim ve kapat'a tıklayalım. Sonra bilgisayarınızı yeniden başlatın.

Hocam, atmış olduğum resimdeki gibi iastor.sys yerinde storahci.sys yazmakta
Bu nedenle yanlış bir şey yaparım diye devam etmedim. Devam edeyim mi?

Ayrıyeten anakart destek bölümümde resimdeki gibi sürücüler var. Bildiğim kadarıyla bunlar disk birleştirme programları ancak yine de bir sorayım dedim.
[CODE title="Debug Sonuçları"]DPC_WATCHDOG_VIOLATION (133)
The DPC watchdog detected a prolonged run time at an IRQL of DISPATCH_LEVEL
or above.
Arguments:
Arg1: 0000000000000000, A single DPC or ISR exceeded its time allotment. The offending
component can usually be identified with a stack trace.
Arg2: 0000000000000501, The DPC time count (in ticks).
Arg3: 0000000000000500, The DPC time allotment (in ticks).
Arg4: fffff806570fb320, cast to nt!DPC_WATCHDOG_GLOBAL_TRIAGE_BLOCK, which contains
additional information regarding this single DPC timeout

Debugging Details:
------------------

*************************************************************************
*** ***
*** ***
*** Either you specified an unqualified symbol, or your debugger ***
*** doesn't have full symbol information. Unqualified symbol ***
*** resolution is turned off by default. Please either specify a ***
*** fully qualified symbol module!symbolname, or enable resolution ***
*** of unqualified symbols by typing ".symopt- 100". Note that ***
*** enabling unqualified symbol resolution with network symbol ***
*** server shares in the symbol path may cause the debugger to ***
*** appear to hang for long periods of time when an incorrect ***
*** symbol name is typed or the network symbol server is down. ***
*** ***
*** For some commands to work properly, your symbol path ***
*** must point to .pdb files that have full type information. ***
*** ***
*** Certain .pdb files (such as the public OS symbols) do not ***
*** contain the required information. Contact the group that ***
*** provided you with these symbols if you need this command to ***
*** work. ***
*** ***
*** Type referenced: TickPeriods ***
*** ***
*************************************************************************
*** WARNING: Unable to verify timestamp for win32k.sys

KEY_VALUES_STRING: 1

Key : Analysis.CPU.mSec
Value: 6125

Key : Analysis.DebugAnalysisManager
Value: Create

Key : Analysis.Elapsed.mSec
Value: 146138

Key : Analysis.Init.CPU.mSec
Value: 639

Key : Analysis.Init.Elapsed.mSec
Value: 60011

Key : Analysis.Memory.CommitPeak.Mb
Value: 79

Key : WER.OS.Branch
Value: vb_release

Key : WER.OS.Timestamp
Value: 2019-12-06T14:06:00Z

Key : WER.OS.Version
Value: 10.0.19041.1


BUGCHECK_CODE: 133

BUGCHECK_P1: 0

BUGCHECK_P2: 501

BUGCHECK_P3: 500

BUGCHECK_P4: fffff806570fb320

DPC_TIMEOUT_TYPE: SINGLE_DPC_TIMEOUT_EXCEEDED

TRAP_FRAME: fffff80659273e50 -- (.trap 0xfffff80659273e50)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000000000010072 rbx=0000000000000000 rcx=ffff808ac4d2c680
rdx=000000000010a01c rsi=0000000000000000 rdi=0000000000000000
rip=fffff80669375092 rsp=fffff80659273fe0 rbp=fffff80659274070
r8=fffff80659274000 r9=000000000010a01c r10=ffff808ac38ea5e0
r11=000000000000000c r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0 nv up ei pl nz ac pe nc
nvlddmkm+0x85092:
fffff806`69375092 488b5c2440 mov rbx,qword ptr [rsp+40h] ss:0018:fffff806`59274020=0000000000000020
Resetting default scope

BLACKBOXBSD: 1 (!blackboxbsd)


BLACKBOXNTFS: 1 (!blackboxntfs)


BLACKBOXPNP: 1 (!blackboxpnp)


BLACKBOXWINLOGON: 1

CUSTOMER_CRASH_COUNT: 1

PROCESS_NAME: System

DPC_STACK_BASE: FFFFF80659274FB0

STACK_TEXT:
fffff806`5927bc88 fffff806`5681ee32 : 00000000`00000133 00000000`00000000 00000000`00000501 00000000`00000500 : nt!KeBugCheckEx
fffff806`5927bc90 fffff806`5661c53d : 0000a557`b6e2b04a fffff806`51071180 00000000`00000246 00000000`015ea135 : nt!KeAccumulateTicks+0x205b12
fffff806`5927bcf0 fffff806`5661cae1 : fffff806`5927be90 00000000`00d0fdd9 fffff806`51071180 00000000`00000001 : nt!KiUpdateRunTime+0x5d
fffff806`5927bd40 fffff806`56616953 : fffff806`51071180 00000000`00000000 fffff806`57031558 00000000`00000000 : nt!KiUpdateTime+0x4a1
fffff806`5927be80 fffff806`5661f312 : fffff806`59273e50 fffff806`59273ed0 fffff806`59273e00 00000000`00000002 : nt!KeClockInterruptNotify+0x2e3
fffff806`5927bf30 fffff806`5667e795 : 00000343`f9cbda09 fffff806`570f3a20 fffff806`570f3ad0 ffffad84`2b3f09ac : nt!HalpTimerClockInterrupt+0xe2
fffff806`5927bf60 fffff806`567f873a : fffff806`59273ed0 fffff806`570f3a20 00000000`00000000 00000000`00000000 : nt!KiCallInterruptServiceRoutine+0xa5
fffff806`5927bfb0 fffff806`567f8ca7 : 00000000`00000000 00000000`00000000 2242c1dc`1001080c 08095204`b880bf04 : nt!KiInterruptSubDispatchNoLockNoEtw+0xfa
fffff806`59273e50 fffff806`69375092 : 00000000`0010a01c ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c : nt!KiInterruptDispatchNoLockNoEtw+0x37
fffff806`59273fe0 00000000`0010a01c : ffff808a`bdf26000 ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 : nvlddmkm+0x85092
fffff806`59273fe8 ffff808a`bdf26000 : ffff808a`bdf27098 00000000`0010a01c 00000000`00000000 00000000`00000000 : 0x10a01c
fffff806`59273ff0 ffff808a`bdf27098 : 00000000`0010a01c 00000000`00000000 00000000`00000000 ffff808a`b977ed20 : 0xffff808a`bdf26000
fffff806`59273ff8 00000000`0010a01c : 00000000`00000000 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d : 0xffff808a`bdf27098
fffff806`59274000 00000000`00000000 : 00000000`00000000 ffff808a`b977ed20 fffff806`6940440d 00000000`00000020 : 0x10a01c


SYMBOL_NAME: nvlddmkm+85092

MODULE_NAME: nvlddmkm

IMAGE_NAME: nvlddmkm.sys

STACK_COMMAND: .thread ; .cxr ; kb

BUCKET_ID_FUNC_OFFSET: 85092

FAILURE_BUCKET_ID: 0x133_DPC_nvlddmkm!unknown_function

OS_VERSION: 10.0.19041.1

BUILDLAB_STR: vb_release

OSPLATFORM_TYPE: x64

OSNAME: Windows 10

FAILURE_ID_HASH: {15c3af0e-5564-7a80-2e26-65b5115ecc4d}

Followup: MachineOwner[/CODE]
  • Başlat ekranına sağ tık yapıp Aygıt yöneticisini açalım.
  • IDE ATA/ATAPI denetleyicilerini genişletin.
  • ‘’SATA AHCI’’ denetleyicisini ( Standart Sata Ahcı Denetleyici ) seçin. Doğru denetleyiciyi seçtiğinizden emin olmak için denetleyiciye sağ tıklayıp özellikler diyelim. Sürücü sekmesine tıklayıp, sürücü ayrıntılarına girelim. Burada iastor.sys sürücüsünün yazdığına emin olalım ve tamama tıklayalım
  • Sürücü sekmesinden, Sürücüyü güncelleştir’e tıklayalım
  • Sürücü yazılımı için bilgisayarımı tara seçeneğine tıklayalım.
  • Bilgisayarımdaki aygıt sürücüleri listesinden seçmeme izin ver kısmına tıklayalım.
  • Standard SATA AHCI Controller seçelim
  • Sonra ileri diyelim ve kapat’a tıklayalım. Sonra bilgisayarınızı yeniden başlatın.
Dediklerinizi yaptım hocam ancak sorun hala devam etmekte.
Ekran kartı sürücüsü ile ilgili bir sorunmuş, yeni sürümde sorun kalmadı.


Dosya Ekleri

  • Aygıt Yöneticisi 4.06.2021 11_07_31.png
    Aygıt Yöneticisi 4.06.2021 11_07_31.png
    31,6 KB · Görüntüleme: 53
  • GPU sürücü güncelleme sonrası mavi ekran hatası _ Technopat Sosyal - Google Chrome 4.06.2021 1...png
    GPU sürücü güncelleme sonrası mavi ekran hatası _ Technopat Sosyal - Google Chrome 4.06.2021 1...png
    86,1 KB · Görüntüleme: 76
  • Sürücü Dosyası Ayrıntıları 4.06.2021 11_05_38.png
    Sürücü Dosyası Ayrıntıları 4.06.2021 11_05_38.png
    11,8 KB · Görüntüleme: 58
  • Standart SATA AHCI Denetleyici Özellikleri 4.06.2021 11_20_46.png
    Standart SATA AHCI Denetleyici Özellikleri 4.06.2021 11_20_46.png
    17,7 KB · Görüntüleme: 69
Son düzenleme:
Çözüm
Uyarı! Bu konu 5 yıl önce açıldı.
Muhtemelen daha fazla tartışma gerekli değildir ki bu durumda yeni bir konu başlatmayı öneririz. Eğer yine de cevabınızın gerekli olduğunu düşünüyorsanız buna rağmen cevap verebilirsiniz.

Technopat Haberler

Geri
Yukarı
