THREAD_STUCK_IN_DEVICE_DRIVER_M (100000ea)
The device driver is spinning in an infinite loop, most likely waiting for
hardware to become idle. This usually indicates problem with the hardware
itself or with the device driver programming the hardware incorrectly.
If the kernel debugger is connected and running when watchdog detects a
timeout condition then DbgBreakPoint() will be called instead of KeBugCheckEx()
and detailed message including bugcheck arguments will be printed to the
debugger. This way we can identify an offending thread, set breakpoints in it,
and hit go to return to the spinning code to debug it further. Because
KeBugCheckEx() is not called the .bugcheck directive will not return bugcheck
information in this case. The arguments are already printed out to the kernel
debugger. You can also retrieve them from a global variable via
"dd watchdog!g_WdBugCheckData l5" (use dq on NT64).
On MP machines it is possible to hit a timeout when the spinning thread is
interrupted by hardware interrupt and ISR or DPC routine is running at the time
of the bugcheck (this is because the timeout's work item can be delivered and
handled on the second CPU and the same time). If this is the case you will have
to look deeper at the offending thread's stack (e.g. using dds) to determine
spinning code which caused the timeout to occur.
Arguments:
Arg1: ffffc10874b3b080, Pointer to a stuck thread object. Do .thread then kb on it to find
the hung location.
Arg2: 0000000000000000, Pointer to a DEFERRED_WATCHDOG object.
Arg3: 0000000000000000, Pointer to offending driver name.
Arg4: 0000000000000000, Number of times "intercepted" bugcheck 0xEA was hit (see notes).
Debugging Details:
------------------
*** WARNING: Unable to verify checksum for win32k.sys
KEY_VALUES_STRING: 1
Key : Analysis.CPU.Sec
Value: 8
Key : Analysis.DebugAnalysisProvider.CPP
Value: Create: 8007007e on DESKTOP-R1MKTM3
Key : Analysis.DebugData
Value: CreateObject
Key : Analysis.DebugModel
Value: CreateObject
Key : Analysis.Elapsed.Sec
Value: 70
Key : Analysis.Memory.CommitPeak.Mb
Value: 73
Key : Analysis.System
Value: CreateObject
BUGCHECK_CODE: ea
BUGCHECK_P1: ffffc10874b3b080
BUGCHECK_P2: 0
BUGCHECK_P3: 0
BUGCHECK_P4: 0
FAULTING_THREAD: ffffc10874b3b080
BLACKBOXBSD: 1 (!blackboxbsd)
BLACKBOXNTFS: 1 (!blackboxntfs)
BLACKBOXWINLOGON: 1
CUSTOMER_CRASH_COUNT: 1
PROCESS_NAME: System
STACK_TEXT:
ffff8a88`74a1b028 fffff802`37400db5 : 00000000`000000ea ffffc108`74b3b080 00000000`00000000 00000000`00000000 : nt!KeBugCheckEx

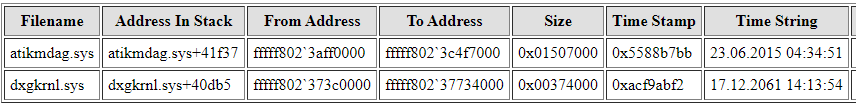

ffff8a88`74a1b030 fffff802`37400e8e : ffff8a88`74a1b108 fffff802`3b021b68 ffff8a88`74a1b108 ffffc108`76c50000 : dxgkrnl!TdrTimedOperationBugcheckOnTimeout+0x45
ffff8a88`74a1b0a0 fffff802`3b031f63 : ffffc108`76c50000 00000000`00000000 ffffc108`76c50000 fffff802`3b021b40 : dxgkrnl!TdrTimedOperationDelay+0xce
ffff8a88`74a1b0e0 ffffc108`76c50000 : 00000000`00000000 ffffc108`76c50000 fffff802`3b021b40 00000000`01c9c380 : atikmdag+0x41f63
ffff8a88`74a1b0e8 00000000`00000000 : ffffc108`76c50000 fffff802`3b021b40 00000000`01c9c380 00000000`00000028 : 0xffffc108`76c50000
STACK_COMMAND: .thread 0xffffc10874b3b080 ; kb
SYMBOL_NAME: dxgkrnl!TdrTimedOperationBugcheckOnTimeout+45
MODULE_NAME: dxgkrnl
IMAGE_NAME: dxgkrnl.sys
IMAGE_VERSION: 10.0.18362.387
FAILURE_BUCKET_ID: 0xEA_IMAGE_dxgkrnl.sys
OS_VERSION: 10.0.18362.1
BUILDLAB_STR: 19h1_release
OSPLATFORM_TYPE: x64
OSNAME: Windows 10
FAILURE_ID_HASH: {ea458ad2-d5ab-aa6c-7a11-54653c70dfb8}
Followup: MachineOwner
